Contains a linear ozone chemistry scheme. Requires HDF5. More...

Public Member Functions
subroutine	init_chemistry (grid)

subroutine	set_global_position (grid)
	Set the global index of the first grid cell. More...

subroutine	read_chemistry ()

subroutine	write_coef_debug (month, fname, nb_lat2)

subroutine	chemistry_iteration (grid, k)
	One chemistry step for a grid. More...

double precision function	linear_interpol_coef (i, day, month, year, offset)
	Suppose the coefficients are given the 15 of each month. Interpolate in time at a given day. More...

subroutine	linear_interpol_all_coef (A, day, month, year, offset)
	Interpolate coefficients linearly in time. Assume the coefficients are independant from longitude. More...

double precision function	ozone_scheme (q_cur, T_air, A)
	No heterogenous chemistry and no ozone colomn terms. More...

subroutine	check_hdf5_error (error, msg)

integer function	get_month (iter)
	Returns the current month to get the proper coefficients. More...

subroutine	check_file_size (dataspace, nb_lat2)

subroutine	free_chemistry ()

Public Attributes
integer	nb_months = 12

integer	nb_coefs = 9
	9 coefficients More...

integer	month = -1

double precision, dimension(:,:,:), allocatable	a_i
	Array of A_i, where A_i is of the form (nb_months, nb_lat) More...

integer	start = -1
	First cells in the latitude array for the current process. More...

character(*), parameter	fname_chem = "chemistry.F90"

character(2), dimension(9), parameter	list_coefs = (/ "A1", "A2", "A3", "A4", "A5", "A6", "A7", "A8", "A9"/)

double precision	dt_chem = -1

Detailed Description

Contains a linear ozone chemistry scheme. Requires HDF5.

Author: Alexis Praga

The ozone tendency is equal to:

$\begin{align*} \displaystyle \frac{dr}{dt} =& <P-L> + <\frac{d(P-L)}{dr}> (r-<r>) \\\ & + <\frac{d(P-L)}{dT}> (T-<T>) + \frac{d(P-L)}{dS}> (S-<S>)+R_{Het} r \end{align*}$

with

r : volumic ozone mixing ratio
T : temperature
S : ozone column above a point
P : photochemical production of ozone
L : photochemical destruction of ozone
R_Het : photochemical destruction of ozone due to heterogeneous chemistry

Terms between < > denote two-dimensional variables obtained at equilibrium from the MOBIDIC 2D photochemical model. Other terms are three-dimensional variables generated by the 3D Circulation Model.

coefficient A1 : (units : s-1)
coefficient A2 : $\frac{d(P - L)}{dr}$ (units : s-1)
coefficient A3 : (units : none (volume mixing ratio))
coefficient A4 : $\frac{d(P-L)}{dT}$ (units : s-1 K-1)
coefficient A5 : (units : K)
coefficient A6 : $\frac{d(P-L)}{dS}$ (units : cm2 molecule-1 s-1)
coefficient A7 : (units : molecule cm-2)
coefficient A8 : (units : s-1 (to be used only if T<195K during daytime at high latitude))

This parameterization is described by Cariolle et al., 1986 (version 1) and the present version 2 by Cariolle and Teyssedre (2007). Version 2 has been improved over version 1 with an update version of the MOBIDIC model. Major changes concern:

the use of JPL Publication 02-25 2003 for chemical rates in MOBIDIC.
the residual circulation to force MOBIDIC is obtained from a scenario calculation of the Arpege/Climat model.
the heterogeneous chemistry is parameterized using an additional ozone destruction term: A8 * r representative of year 2000 with 3.8 ppbv total chlorine in the upper stratosphere. If the parameterization is used for other periods with a different total chlorine content Clx, the A8 term must be replaced by: A8 * (Clx/3.8)**2, the destruction rates being a quadratic function of Clx. In addition the A8 term must be used only if T<195K and during daytime (for solar zenith angles lower than 87Â°) at high latitude (over 45Â° latitude).

The major improvements of version 2 over the version 1 are a reduction of a negative bias in the ozone content in the middle stratosphere (around 10-30 hPa) at low and mid latitudes (compared to HALOE and SAGE data), a reduction f a positive bias in the ozone content in the troposphere and a total ozone content in very good agreement with he TOMS data all year around.

In addition, the version 2 can be used with a cold tracer formulation for calculation of the heterogeneous chemistry (see Cariolle and Teyssedre, 2007). The coefficient A9 gives the cold tracer decay rate (Units: s-1).

The users of the parameterization are requested to give reference to Cariolle and al., 1986 and/or Cariolle and Teyssedre (2007) in any publication of results obtained using this paramaterization, and to refer to the authors in case of problems encountered in implementation or use.

For further informations, you can contact :

Daniel Cariolle

CERFACS - METEO-FRANCE phone: 33 (0)5 61 19 31 71 42, avenue G. Coriolis fax: 33 (0)5 61 19 30 00 F-31057 Toulouse Cedex e-mail: danie.nosp@m.l.ca.nosp@m.rioll.nosp@m.e@ce.nosp@m.rfacs.nosp@m..fr

Reference : Cariolle, D. and M. Deque. Southern hemisphere medium-scale waves and total ozone disturbances in a spectral general circulation model. J. Geophys. Res., vol. 91, pp 10825-10846, 1986.

Cariolle, D. and H. Teyssedre. A revised linear ozone photochemistry parameterization for use in transport and general circulation models: multi-annual simulations. Atmos. Chem. Phys., 7, 2183Ã2196, 2007.

Member Function/Subroutine Documentation

subroutine chemistry::check_file_size	(	integer(hid_t)	dataspace,
		integer	nb_lat2
	)

Here is the call graph for this function:

subroutine chemistry::check_hdf5_error	(	integer, intent(in)	error,
		character(*), intent(in)	msg
	)

Here is the call graph for this function:

subroutine chemistry::chemistry_iteration	(	type(band_grid)	grid,
		integer, intent(in)	k
	)

One chemistry step for a grid.

Parameters

k	: current iteration

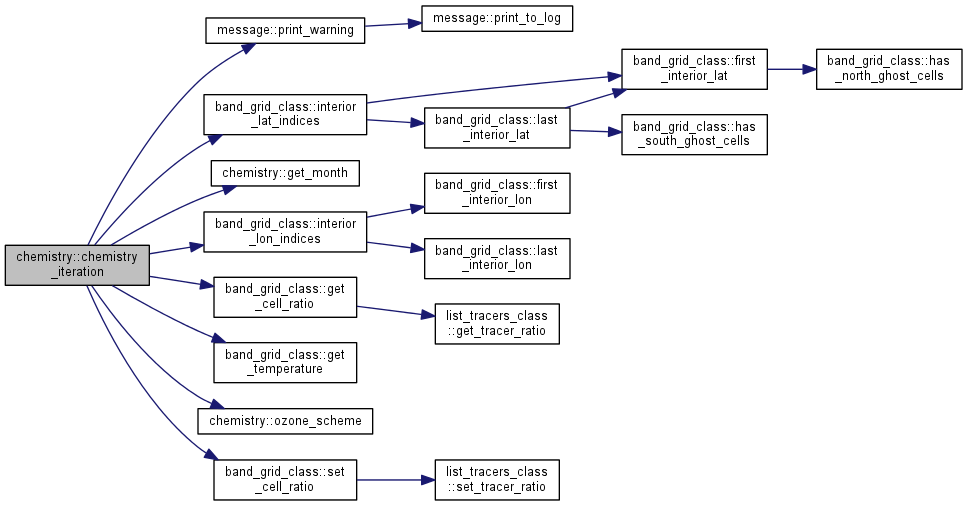

Here is the call graph for this function:

subroutine chemistry::free_chemistry ( )

integer function chemistry::get_month ( integer iter )

Returns the current month to get the proper coefficients.

subroutine chemistry::init_chemistry ( type (band_grid) grid )

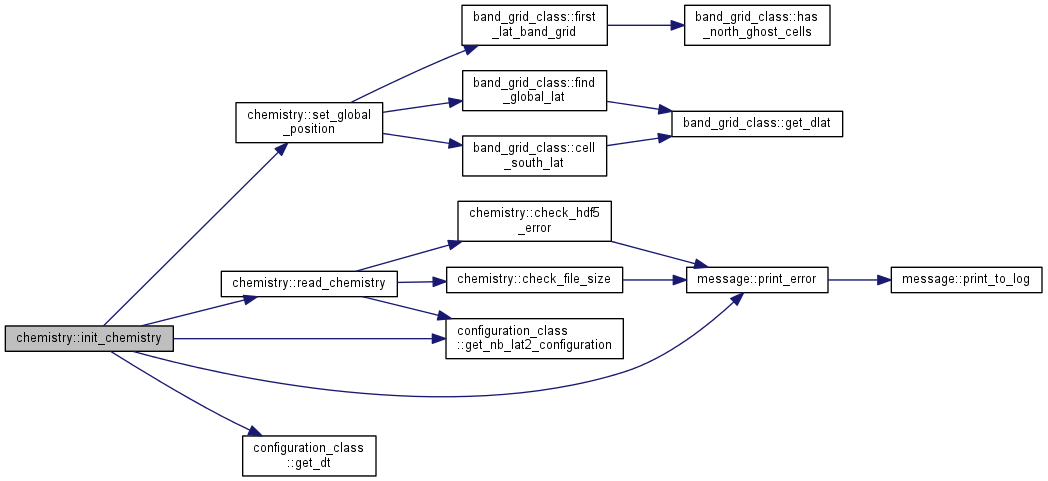

Here is the call graph for this function:

subroutine chemistry::linear_interpol_all_coef	(	double precision, dimension(5)	A,
		integer, intent(in)	day,
		integer, intent(in)	month,
		integer, intent(in)	year,
		integer, intent(in)	offset
	)

Interpolate coefficients linearly in time. Assume the coefficients are independant from longitude.

Here is the call graph for this function:

double precision function chemistry::linear_interpol_coef	(	integer, intent(in)	i,
		integer, intent(in)	day,
		integer, intent(in)	month,
		integer, intent(in)	year,
		integer, intent(in)	offset
	)

Suppose the coefficients are given the 15 of each month. Interpolate in time at a given day.

Parameters

day,month	current date
i	: coefficient number
offset	: offset from start, the first global position

double precision function chemistry::ozone_scheme	(	double precision, intent(in)	q_cur,
		double precision, intent(in)	T_air,
		double precision, dimension(5), intent(in)	A
	)

No heterogenous chemistry and no ozone colomn terms.

Parameters

q_cur	: ozone ratio at previous iteration
T_air	: temperature at previous iteration
q_next	: ozone ratio at next iteration
A	: all five coefficients interpolated beforehand

subroutine chemistry::read_chemistry ( )

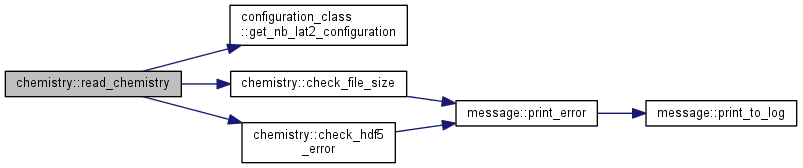

Here is the call graph for this function:

subroutine chemistry::set_global_position ( type (band_grid) grid )

Set the global index of the first grid cell.

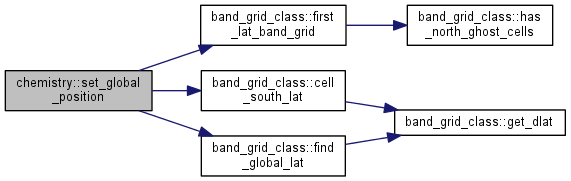

Here is the call graph for this function:

subroutine chemistry::write_coef_debug	(	integer	month,
		character(*)	fname,
		integer	nb_lat2
	)

Member Data Documentation

double precision, dimension(:, :,:), allocatable chemistry::a_i

Array of A_i, where A_i is of the form (nb_months, nb_lat)

double precision chemistry::dt_chem = -1

character(*), parameter chemistry::fname_chem = "chemistry.F90"

character(2), dimension(9), parameter chemistry::list_coefs = (/ "A1", "A2", "A3", "A4", "A5", "A6", "A7", "A8", "A9"/)

integer chemistry::month = -1

integer chemistry::nb_coefs = 9

9 coefficients

integer chemistry::nb_months = 12

integer chemistry::start = -1

First cells in the latitude array for the current process.

The documentation for this module was generated from the following file:

/home/pae/praga/phd/pangolin/src/chemistry.F90
