Connectivity filter

Description

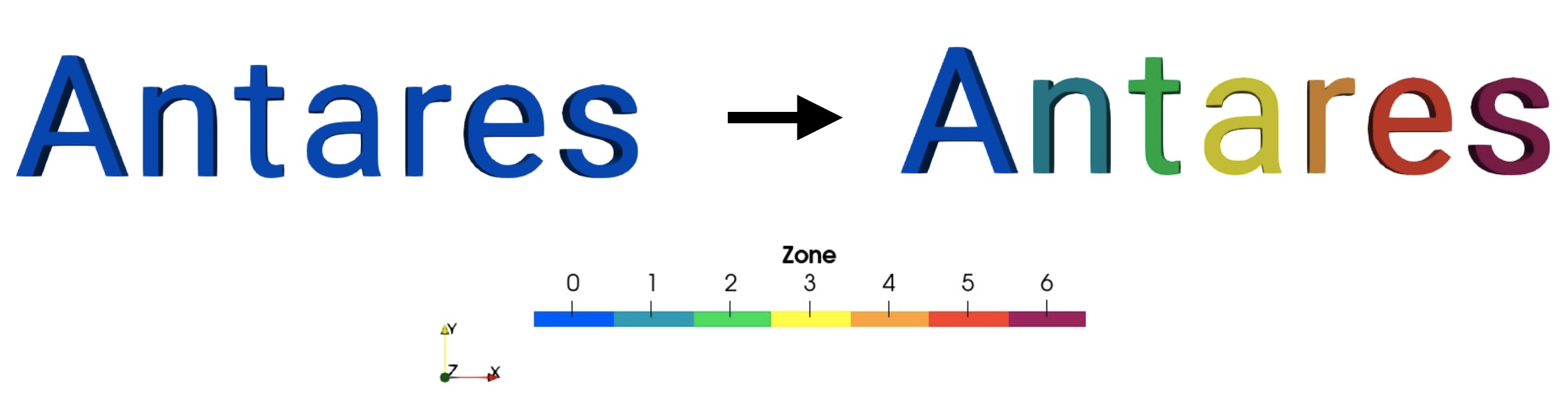

Split a single-zone base into a multi-zone base with the different connected regions.

Parameters

• base: Base

  The input single-zone base to be split

• type: str, default= 'node'

  How cells are considered to be connected to other cells. If 'node', cells are considered as connected if they share at least one node. If 'edge', cells are considered connected if they share at least one edge.

Preconditions

• Input base must contain only one zone.

• Input base must have a shared geometry

Postconditions

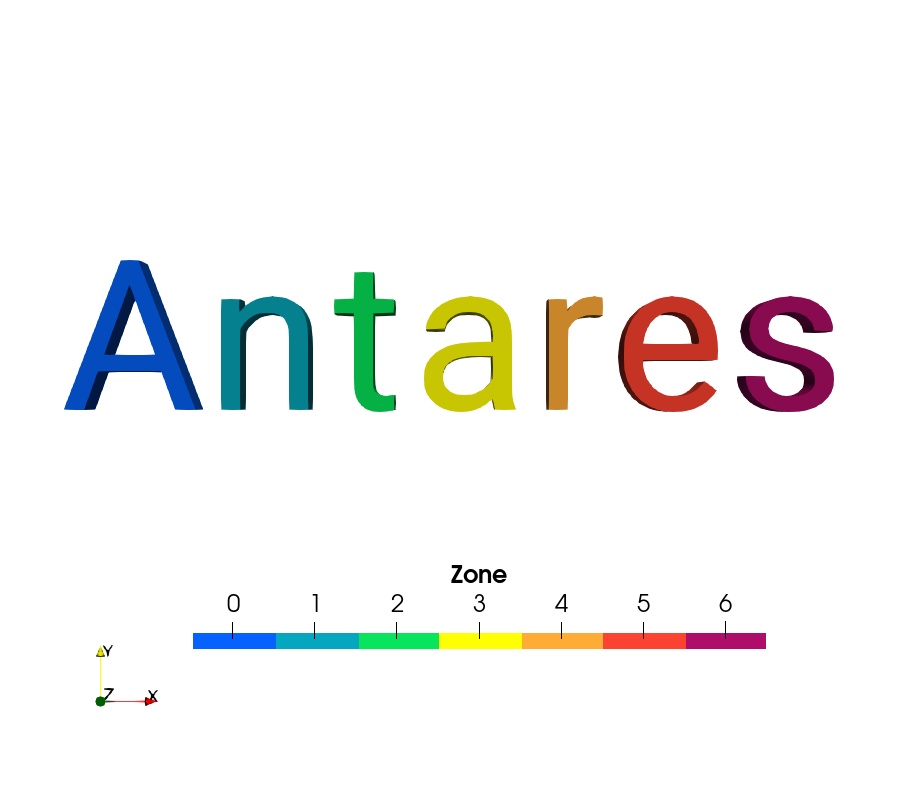

The output base contains one zone per each independently connected region in the base.

Example

import antares
myt = antares.Treatment('connectivityfilter')
myt['base'] = base
myt['type'] = 'edge'
split_base = myt.execute()

or

import antares
split_base = antares.treatment.ConnectivityFilter(base=base, type='edge')

Example

The following example shows how use the treatment

import antares
import os

output_folder = os.path.join("OUTPUT", "TreatmentConnectivityFilter")
os.makedirs(output_folder, exist_ok=True)

reader = antares.Reader('hdf_cgns')
reader['filename'] = os.path.join('..', 'data', 'CONNECTIVITY_FILTER', 'antares.cgns')
base = reader.read()

treatment = antares.Treatment('connectivityfilter')
treatment['base'] = base
smoothed_surface = treatment.execute()

writer = antares.Writer('hdf_antares')
writer['base'] = smoothed_surface
writer['filename'] = os.path.join(output_folder, 'split_base')
writer.dump()
